Coil Loop Insert

Coil Loop Insert Describe：

Coil inserts, also known as helical inserts or thread inserts, are metal cylinders with screw-like coils Coil inserts come in different sizes, materials, and shapes, and they are installed into a pre-drilled hole or a threaded hole using a special installation tool. coil loop insert is commonly used to attach precast wall panels to a building frame, as well as to provide attachment points for other structural elements. Coil inserts are commonly used in precast roadway slabs, which are large concrete panels that are precast offsite and then transported to the construction site for installation. The coil inserts are embedded into the concrete during the precasting process and then used to lift and position the roadway slabs during installation. One of the key advantages of using coil inserts for precast lifting is that they provide a secure and reliable lifting point that is specifically designed for the weight and dimensions of the precast element. This helps to reduce the risk of damage to the precast element during lifting and handling and ensures that it is properly positioned and aligned during installation. Overall, the coil loop insert is a versatile and reliable hardware solution for precast concrete applications that require lifting, anchoring, or attachment.

we also sell   Embedded Magnet, lifting sockets.

The same style as ALP coin insert, the price is affordable, welcome to consult.

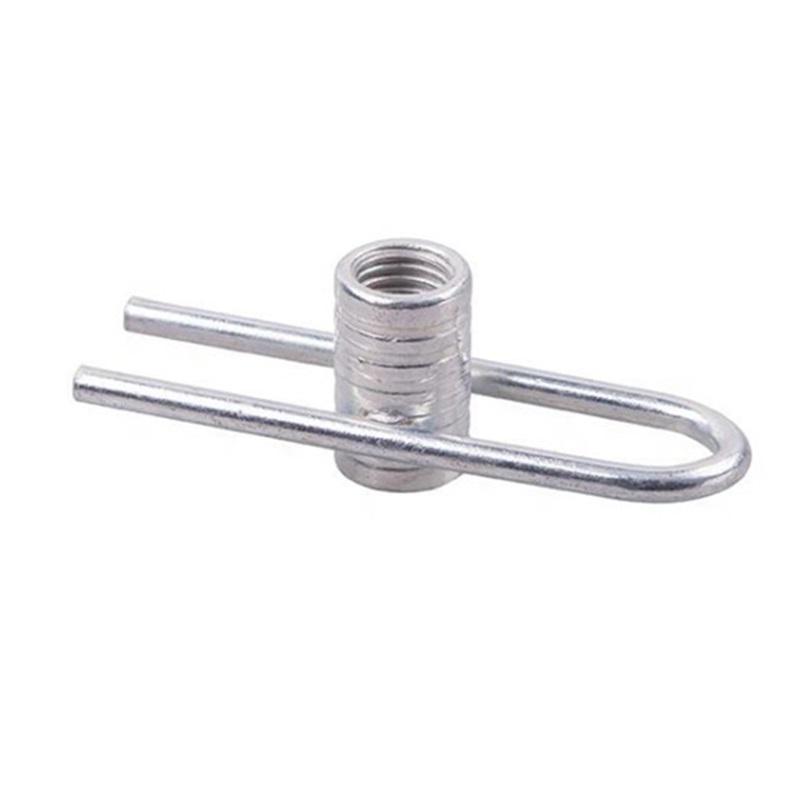

Coil Straight Loop Insert                                             Thin Slab Coil                                                   Flared Loop Coil

Flared Thin Slab Coil                                      Flared Thin Slab Coil                                                      Exp Coil Insert

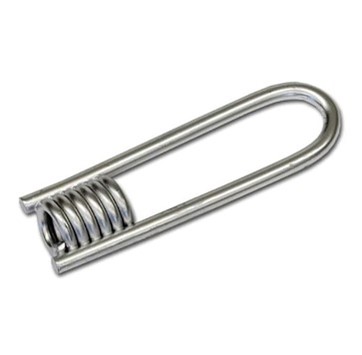

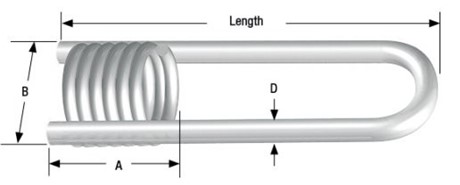

Straight loop coin insert:

Design and manufacture of straight loop coin inserts, Straight loop coin insert are ideal for use as bolted connections.

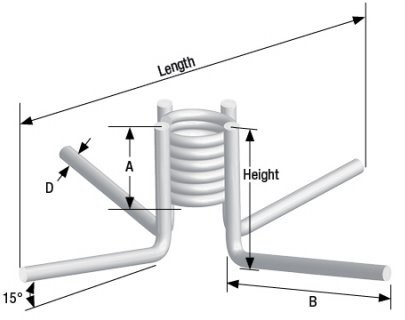

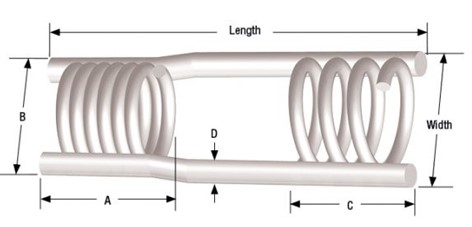

 Flared Thin Slab Coil Insert:

Flared sheet coil inserts are used where panel thickness is limited to provide better tension loading.

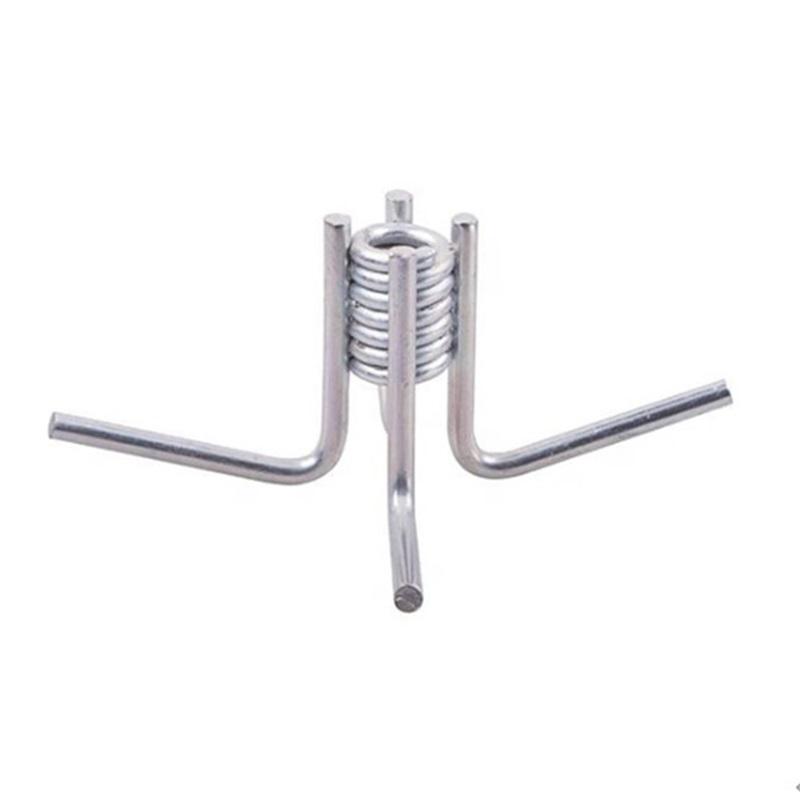

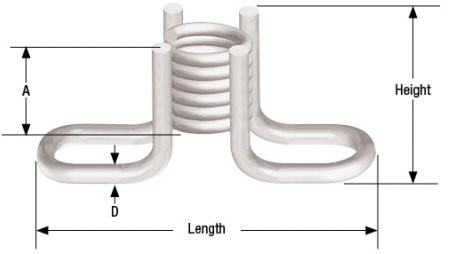

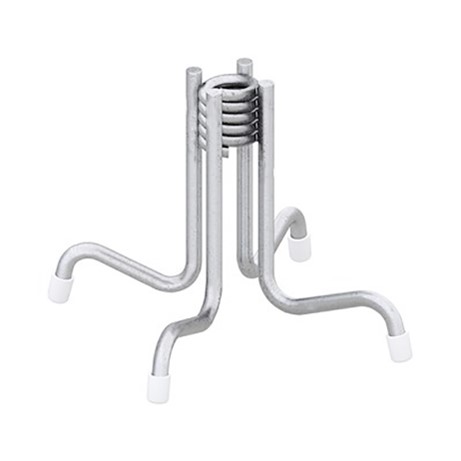

Thin Slab Coil Insert:

Thin Sheet Coil Inserts are designed for lifting and handling Thin preform inserts should have a minimum of 3/4" floor clearance for load rating.

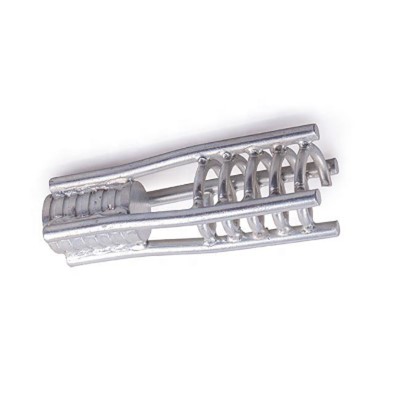

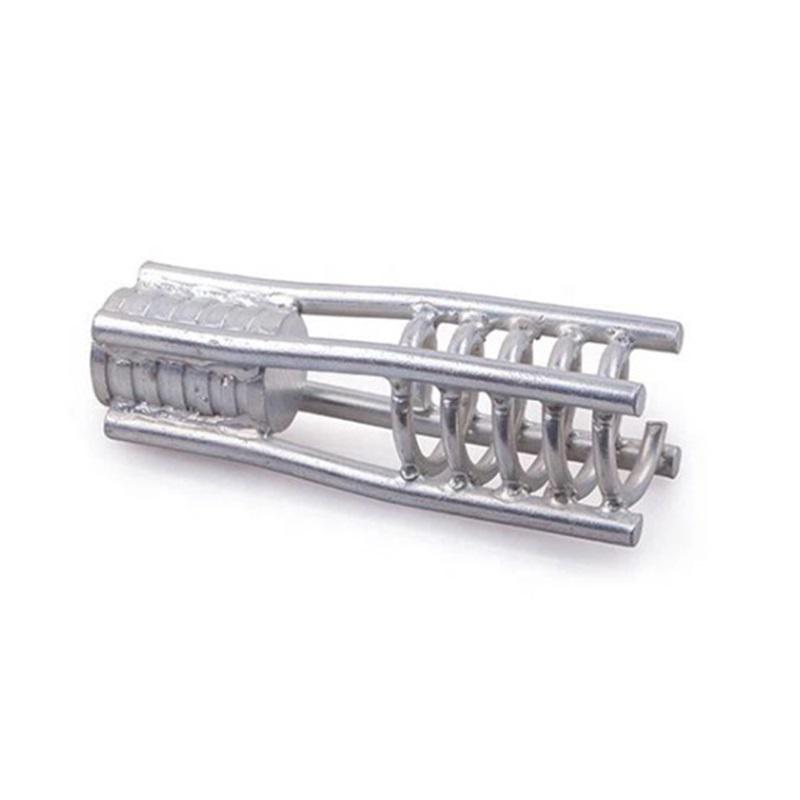

 Expanded Coil Inserts:

with an expanded pitch coil at the end, which distributes the applied loads over a large area of concrete.

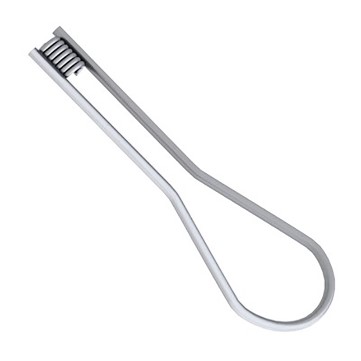

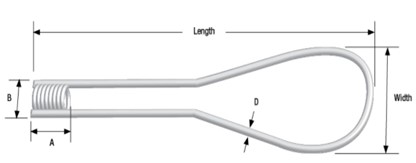

 Flared loop coin insert：

Inserts must be set back 1/2"from concrete surface and have sufficient coil penetration by lifting bolt

The same style as the ALP coin insert, the price is affordable, welcome to consult.

Advantage of Coil Insert Strength and durability:

Coil inserts provide a strong and durable thread connection that is resistant to wear and tear, making them ideal for use in high-stress applications.

Increased load-bearing capacity:

By reinforcing and repairing damaged threads, coil inserts can increase the load-bearing capacity of a threaded connection, allowing it to support more weight or withstand more force.

Improved resistance to vibration and shock:

Coil inserts can help to reduce the risk of loosening or failure due to vibration or shock, providing a more secure and reliable thread connection.

Easy installation:

Coil inserts can be installed quickly and easily using a special installation tool, without the need for complex equipment or specialized skills.

Application of Coil Loop Insert:

Coil Loop Insert was designed for use in thin precast concrete elements or for conditions where a longer insert cannot be used. This insert is closed at the back end of the ferrule to keep concrete from getting into the threads. The ferrule will accept only NC threaded bolts of appropriate diameters.

Coil Loop Insert Display:

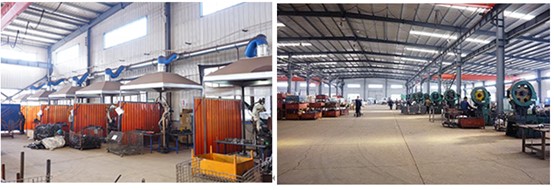

Factory of Coil Loop Insert :

LSC is a manufacturer and global supplier of precast, formwork, building and industrial product components to many different industries. We only produce in our own factory using modern high-tech machinery to ensure maximum cost efficiency. We offer standard and customer designed solutions for large and small orders. Production is based on high quality, safety, value and profitability.
